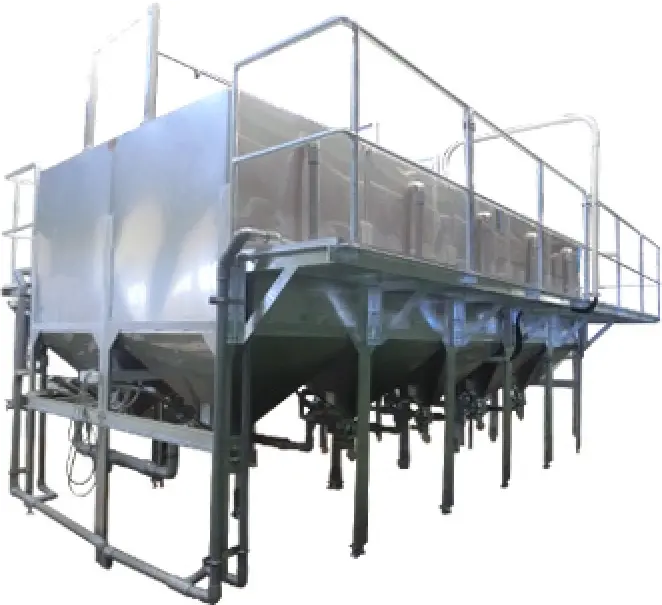

Soybean Soaking Tanks
Four-square type or parallel type
The System for soaking dry soybeans before grinding.
[Standard Features]
- soybean discharging valve (a gate or butterfly valve)
- Soybean stopper plug set
- Manual water supply
- Manual blower
[Optional Features]
- Soybean discharging valve (Also works as the stopper plug)
- Automatic water supply
- Automatic blower
- Frames

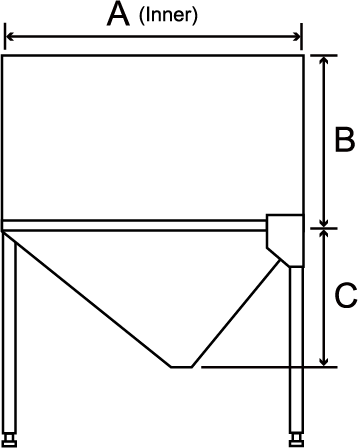

| Dry beans | Parallel type | Four-square type | ||||
| A | B | C | A | B | C | |
| 180kg | 1,000 | 584 | 460 | 1,000 | 417 | 925 |
| 240kg | 1,000 | 834 | 460 | 1,000 | 690 | 925 |
| 300kg | 1,100 | 850 | 510 | 1,000 | 666 | 1,025 |
| 360kg | 1,150 | 945 | 530 | 1,150 | 751 | 1,025 |
| 420kg | 1,150 | 1,134 | 530 | 1,150 | 910 | 1,075 |
| 480kg | 1,220 | 1,141 | 570 | 1,220 | 937 | 1,145 |
